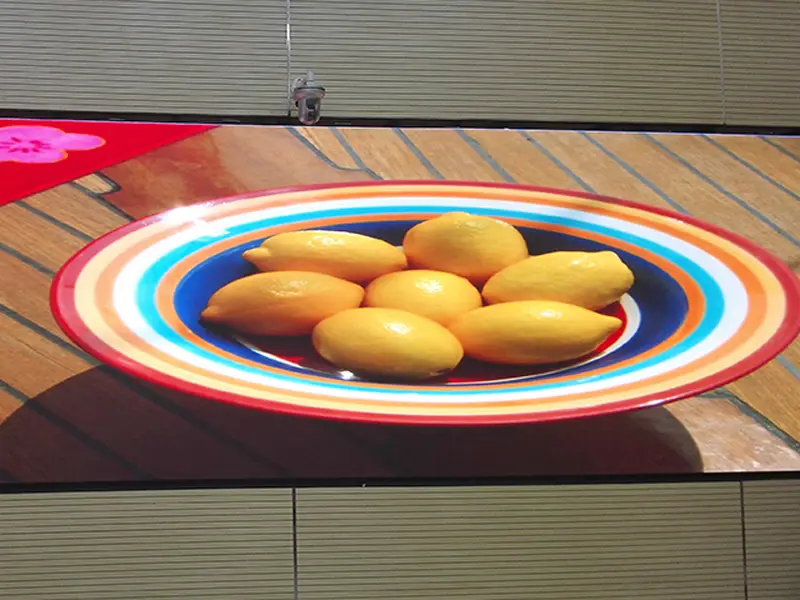

Fine Pitch LED Display for 4K 8K HD Video Wall
Front Maintenance
Thin and Light Weight

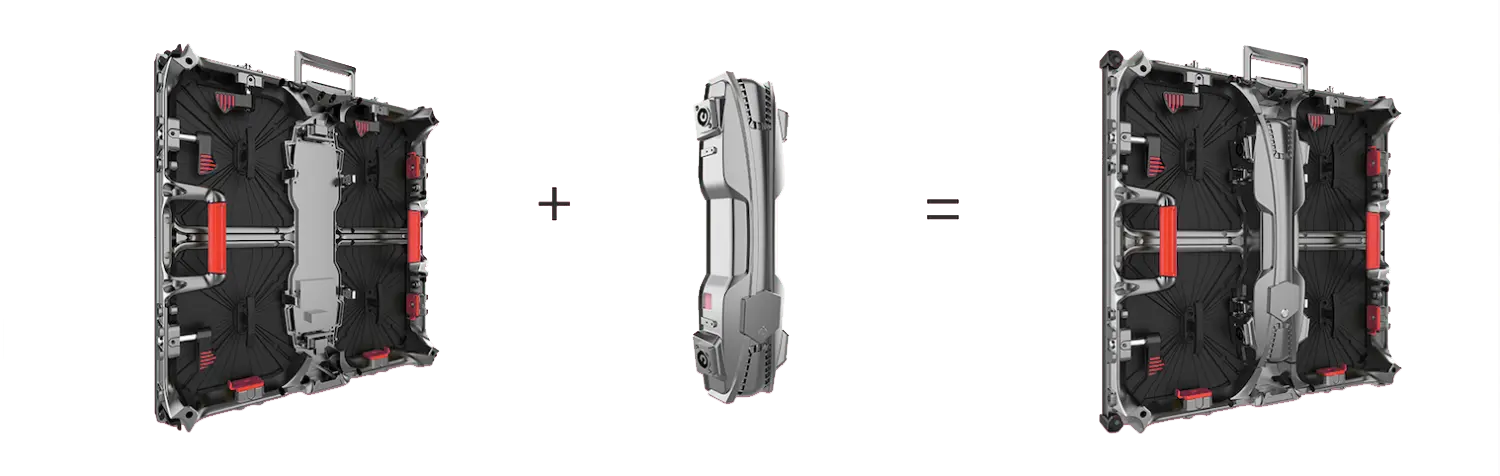

Free Structure
Direct Power Connection
Description

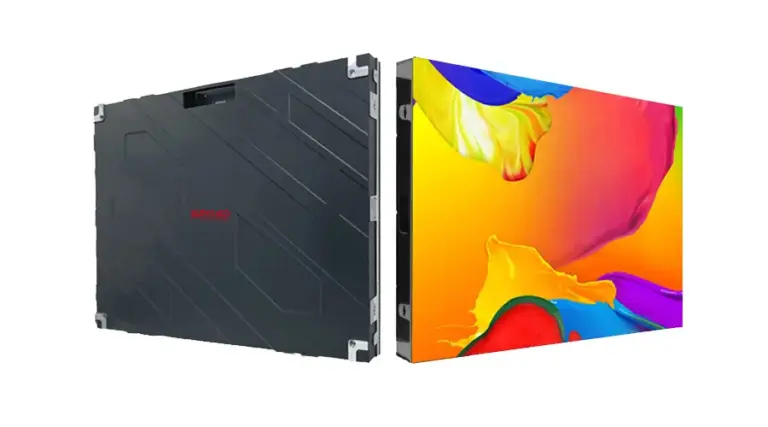

Thin and Light Weight
With only 59mm thickness and 7KG/pc weight, the fine pitch LED display panel is portable and easy to install.
Front Maintenance

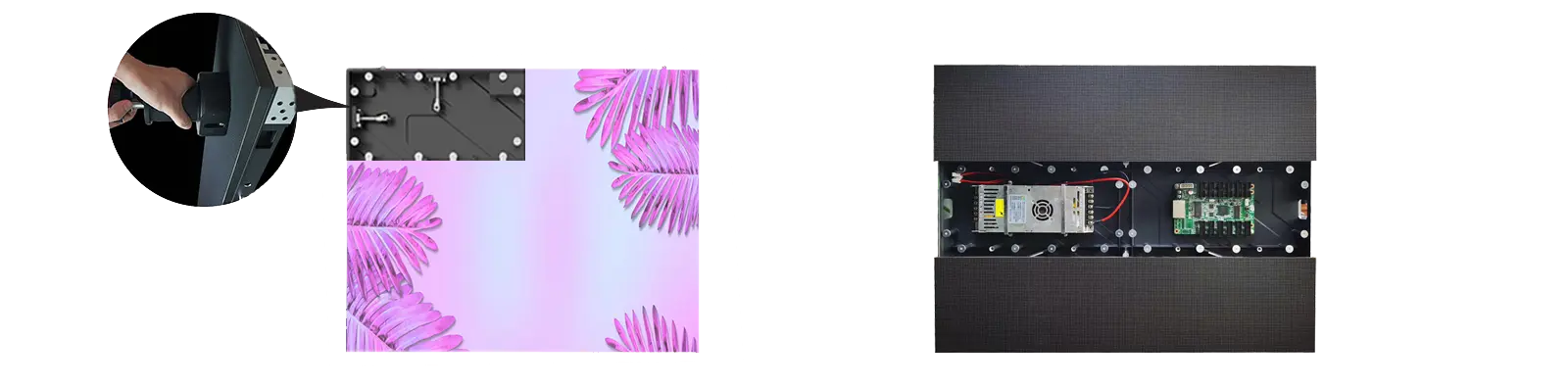

The small pitch LED display is completely front maintenance, LED modules are pasted by magnets. Just need a vacuum tool to remove LED modules, then can maintain cables, receiving cards and power supplies.

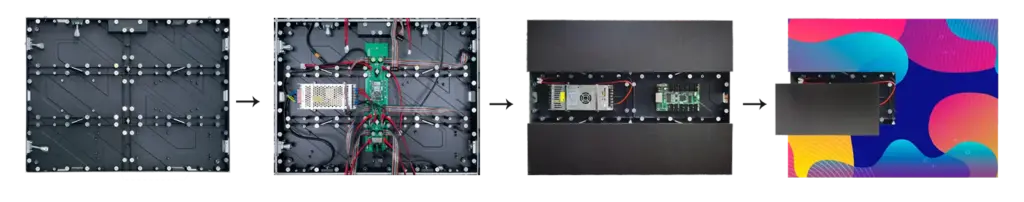

Installation and Maintenance
1. Fixed empty LED cabinet on wall by screws.
2. Assemble power supplies, receiving cards and cables.
3. Paste LED modules on LED cabinets.
4. Maintain LED screen.
Why Choose Us
1. SGLED use direct power cable, it is just like powerCon, very easy to insert and pull out. 2 SGLED use rainbow data cables, its quality is more stable than common data cable
Our Service
1. Free technical training if needed. ---Client can visit SGLED factory, and SGLED technician will teach you how to use Event LED Display and repair rental LED display.
2. Professional after sale service.
---Our technician will help you to configure rental LED screen by remote if you don’t know how to make rental LED screen work.
--- We send you spare part LED modules, power supply, controller card and cables. And we repair rental LED modules for you all life.
3. Local installation is supported. ---Our technician can go to your place to install rental LED screen if needed.
4. LOGO print. ---SGLED can print LOGO free even if buy 1 piece.
FAQ
Q. Do I need to buy other equipment to install Modular LED Screen? ---A. You just need to prepare power distribution box, structure and installation tools. We can also provide one stop purchase service if you need.
Q. Can this LED display be installed permanently outside? ---A. E series LED panel is for events use. It has no problem to be used outdoor for events. But if need long time used outdoor, such as install on truck or trailer, it is better to buy fixed LED display.
Q. How long time is needed to produce? ---A. Our production time is 7-15 working days. We have 160sqm RT series P3.91 LED display stock now, delivery time is 3 days.
Q. How long does shipping take? ---A. Express and air shipping usually take 5-10 days. Sea shipping takes about 15-55 days according to different country.
Q. What trade terms do you support? ---A. We usually do FOB, CIF, DDU, DDP, EXW terms.
Q. This is the first time to import, I don’t know how to do. ---A. We offer DDP door to door service, you just need to pay us, then wait to receive order.
Q. What is LED screen common size? --A. 16:9 and 4:3 aspect ratio is popular.
How We Do?
1. Order type -- We have many hot sale model LED video wall ready to ship, and we also support OEM and ODM. We can customize LED screen size, shape, pixel pitch, color and package according to customer's request.
2. Payment method -- T/T, L/C, PayPal, credit card, Western Union and cash are all available.
3. Shipping way -- We usually ship by sea or by air. if order is urgent, express such as UPS, DHL, FedEx, TNT and EMS are all okay.
Video
Application

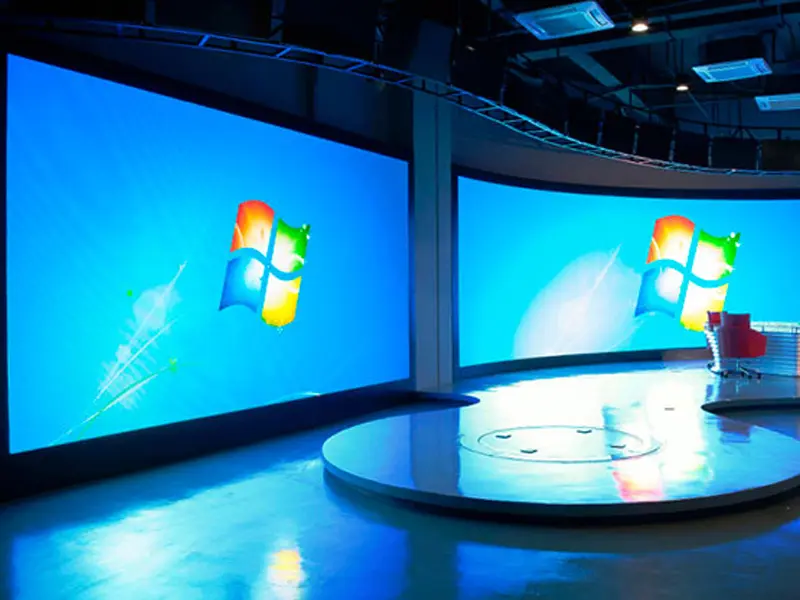

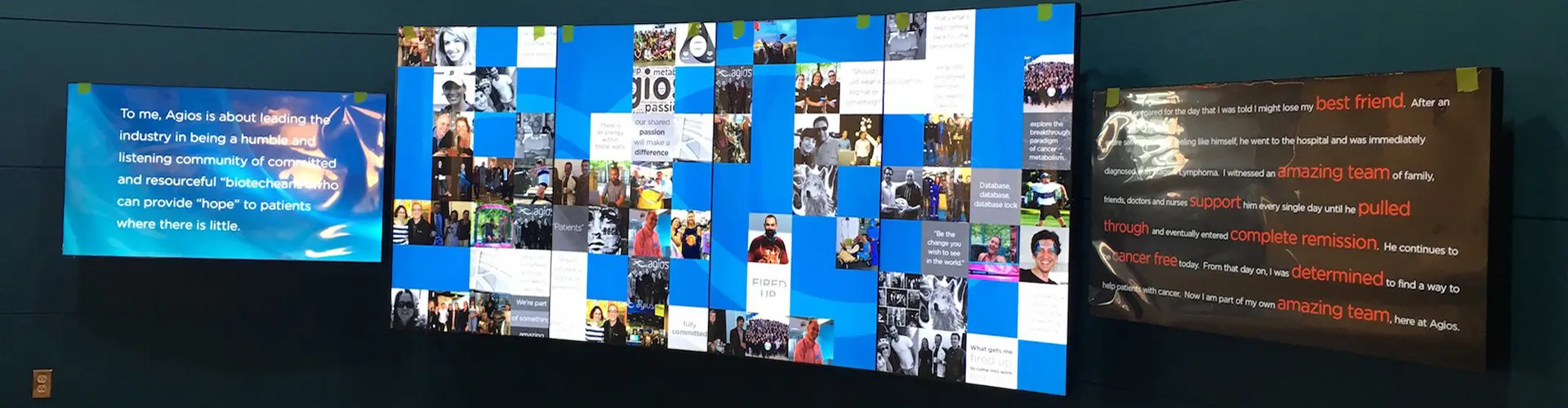

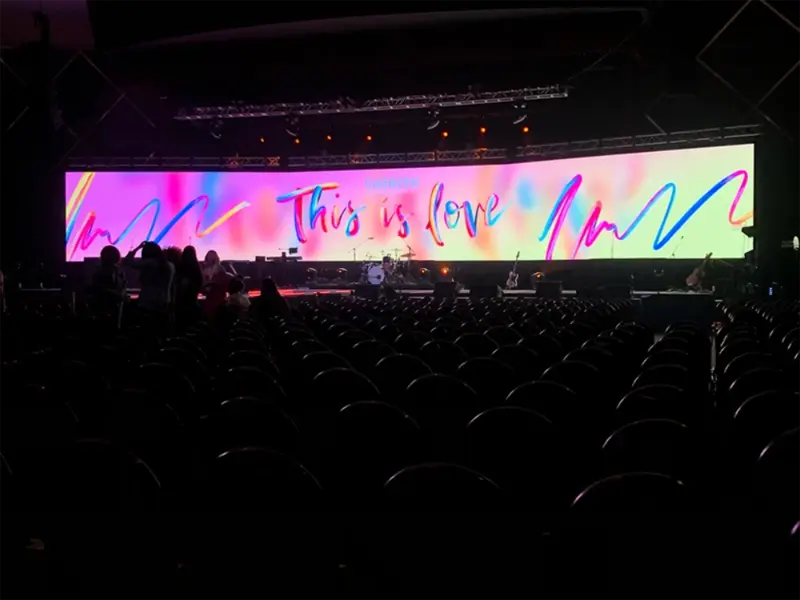

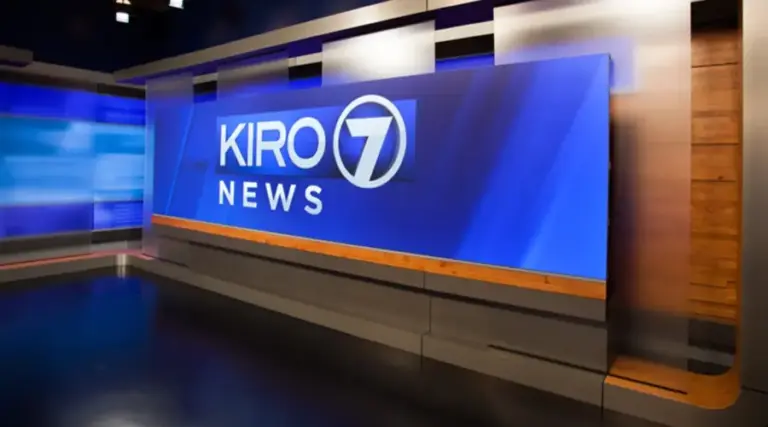

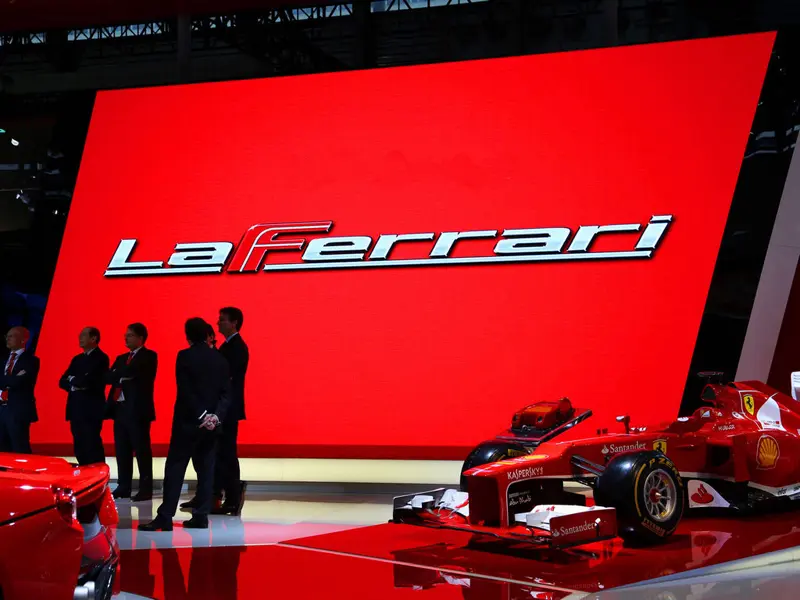

SGLED fine pitch LED screen can be used for meeting room, TV studio, exhibition and monitor.
Product Parameter
|
P1.86 |
P2 |
P2.5 |
|
|
Pixel Pitch |
1.86mm |
2mm |
2.5mm |
|
Density |
289,050 dots/m2 |
250,000 dots/m2 |
160,000dots/m2 |
|
Led Type |
SMD1515 |
SMD1515 |
SMD1515 / SMD2121 |
|
Panel Size |
640 x 480 mm |
640 x 480 mm |
640 x 480 mm |
|
Panel Resolution |
344 x 258 dots |
320 x 160 dots |
256 x 128 dots |
|
Panel Material |
Die Casting Aluminum |
Die Casting Aluminum |
Die Casting Aluminum |
|
Screen Weight |
7 KG |
7 KG |
7 KG |
|
Drive Method |
1/43 Scan |
1/32 Scan |
1/32 Scan |
|
Best Viewing Distance |
1.8 - 18m |
2 - 20 m |
2.5 - 25 m |
|
Brightness |
900 nits |
900 nits |
900 nits |
|
Input Voltage |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
|
Max Power Consumption |
800W |
800W |
800W |
|
Average Power Consumption |
300W |
300W |
300W |
|
Application |
Indoor |
Indoor |
Indoor |
|
Maintenance Way |
Front Service |
Front Service |
Front Service |
|
Life Span |
100,000 Hours |
100,000 Hours |
100,000 Hours |
