Advertising LED Display Outdoor IP65 Full Color 3 Years Warranty
High Brightness 4500-7000 Nits
Big Viewing angle 160 Degrees
High Waterproof Level IP65
Energy-Saving 300W/sqm

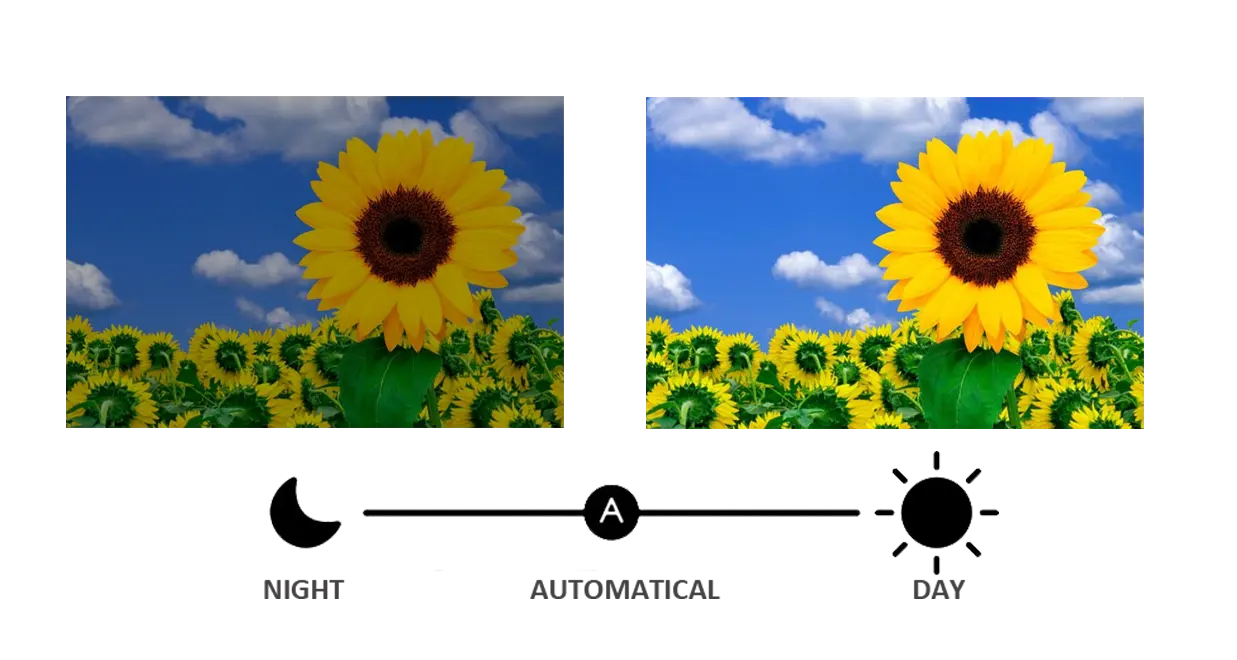

High Brightness
Big Viewing Angle
IP65 Waterproof Grade
Energy Saving

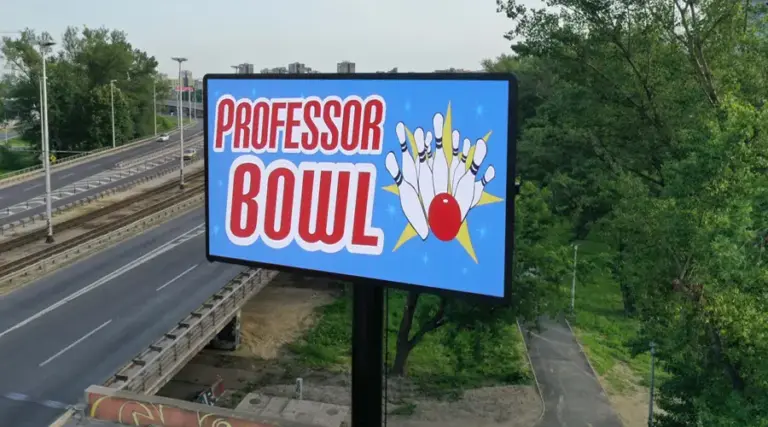

Different Installation Way

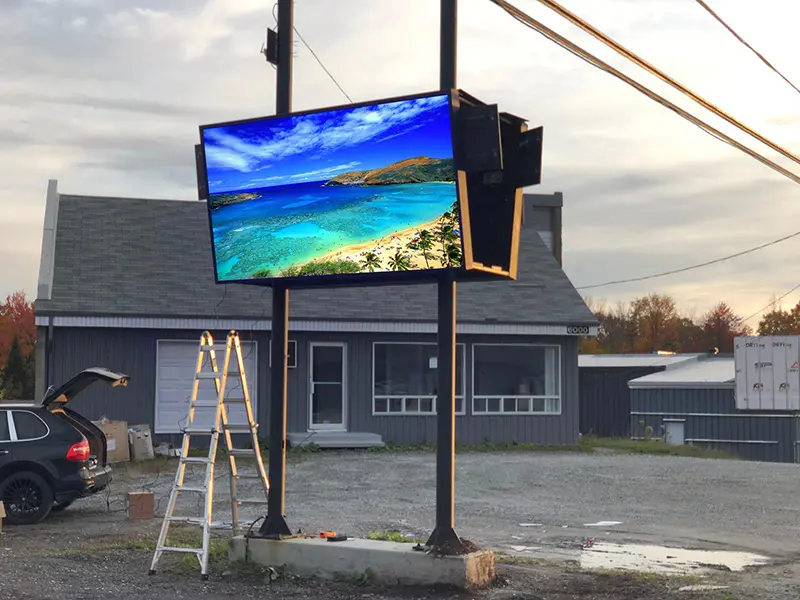

SGLED outdoor LED display can installed by different way. It can be installed on single pole, dual pole, truck, trailer, building roof, it can also can be mounted on building wall, front maintenance and double-sided are also available. We can provide steel structure CAD drawing for you and assistant you assemble.

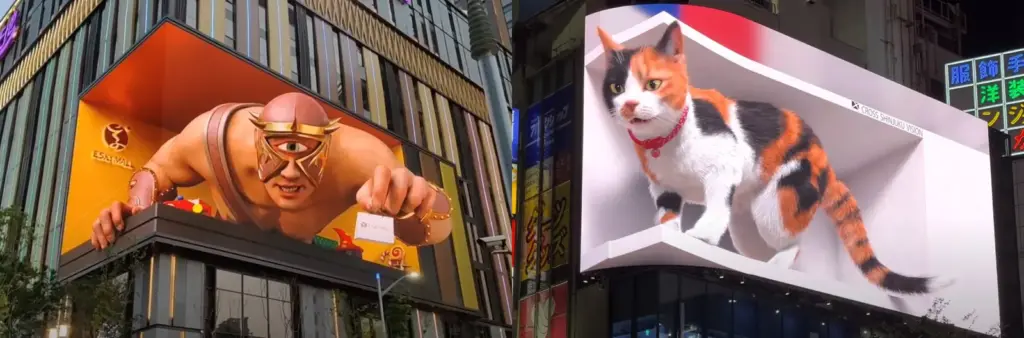

Naked-Eye 3D Video Supported
SGLED outdoor LED display screen can play 3D video. 3D Outdoor LED display looks more real, especially for right angle advertising LED display and curved outdoor LED display.
Why LED billboard but not cloth billboard?
- Digital LED billboard brightness is much higher than common cloth billboard.
2. Led billboard lifespan is about 100,000 hours, while cloth billboard will brake in short time. LED billboard cost less than cloth billboard in the long run.
3. Advertising LED display can play several images and videos, while cloth billboard can only show one picture for long time.
Accessories
Our Service
1. Free technical training if needed. ---Client can visit SRYLED factory, and SGLED technician will teach you how to use Outdoor LED display and repair advertising LED display.
2. Professional after sale service.
---Our technician will help you to configure outdoor LED display by remote if you don’t know how to make it work.
--- We send you enough spare part LED modules, power supply, controller card and cables. And we repair LED modules for you all life.
3. Local installation is supported. ---Our technician can go to your place to install advertising LED display if needed.
4. LOGO print. ---SRYLED can print LOGO free even if buy 1 piece.
FAQ
Q. How long time is needed to produce? ---A. Our production time for advertising LED display is 3-15 working days.
Q. How long does shipping take? ---A. Express and air shipping usually take 5-10 days. Sea shipping takes about 15-55 days according to different country.
Q. What trade terms do you support? ---A. We usually do FOB, CIF, DDU, DDP, EXW terms.
Q. This is the first time to import, I don’t know how to do. ---A. We offer DDP door to door service, you just need to pay us, then wait to receive order.
Q. Do I need to buy other equipment to install outdoor LED screen? ---A. You just need to prepare power distribution box , steel structure and installation tools.
Q. What is outdoor LED screen common size? --A. 12m x 8m, 8m x 6m, 6m x 4m, 4m x3m etc are popular size. We can customize LED advertising screen size according to your actual installation area.
Q. How to play 3D video advertisement? ---A. Your video source should be 3D video, other operation way is same as common outdoor advertising LED display.
How We Do?
1. Order type -- We have many hot sale model LED video wall ready to ship, and we also support OEM and ODM. We can customize outdoor LED screen size, shape, pixel pitch, color and package according to customer's request.
2. Payment method -- T/T, L/C, PayPal, credit card, Western Union and cash are all available.
3. Shipping way -- We usually ship by sea or by air. if order is urgent, express such as UPS, DHL, FedEx, TNT and EMS are all okay.
Video

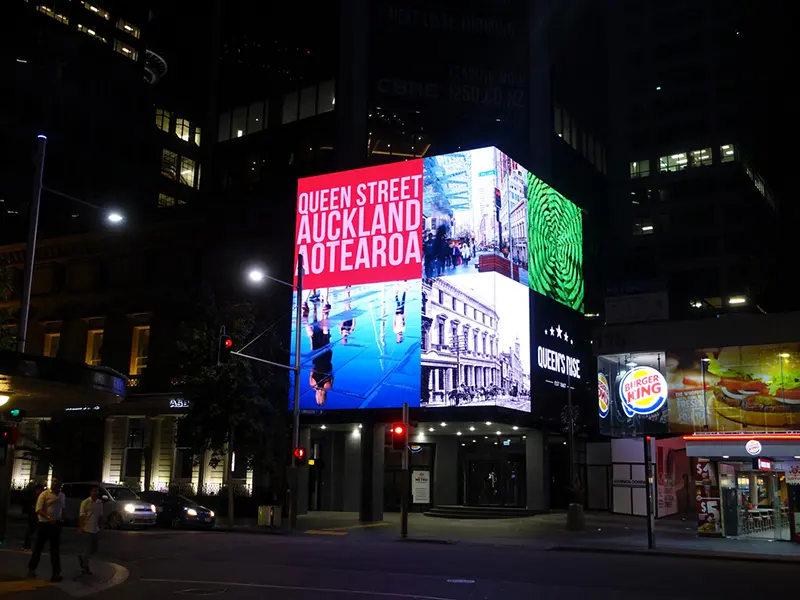

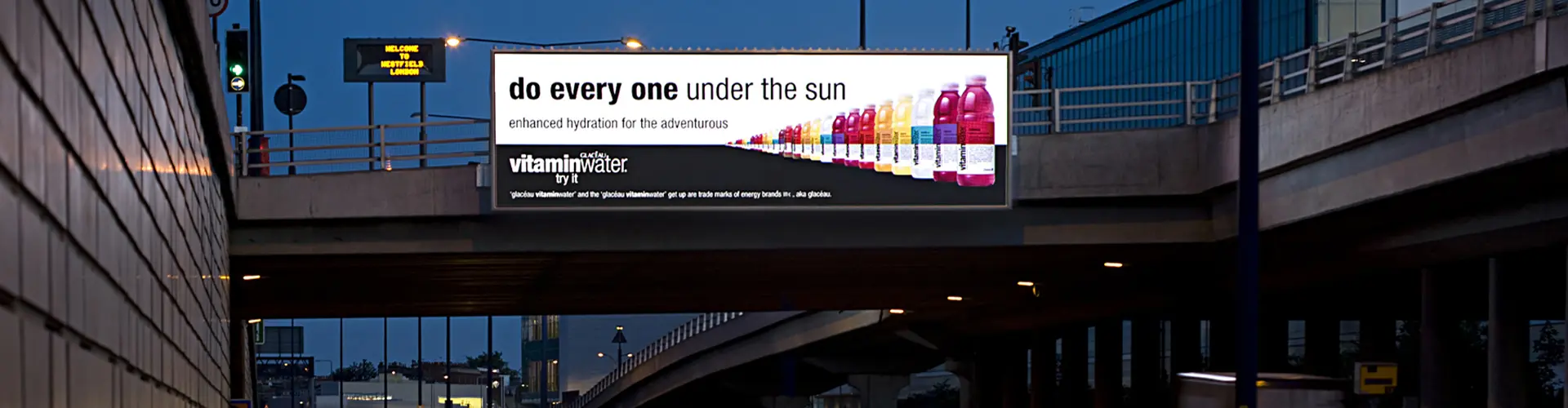

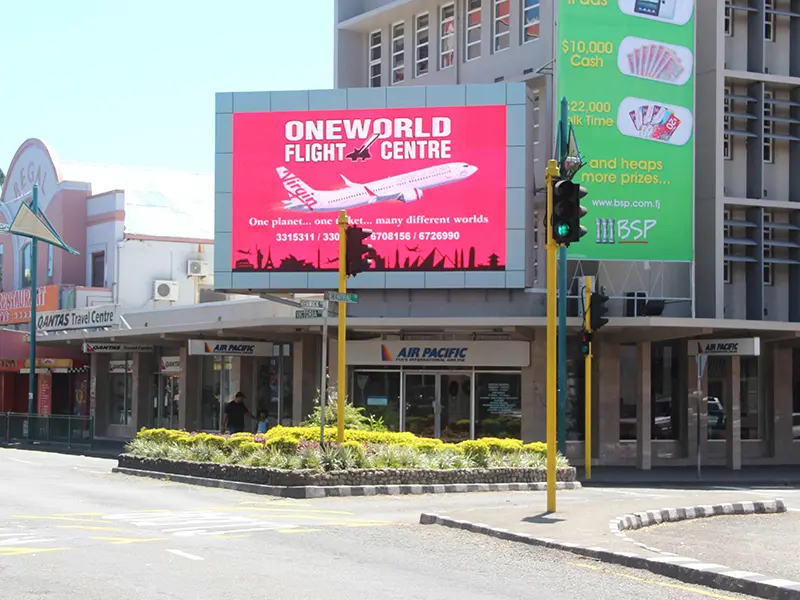

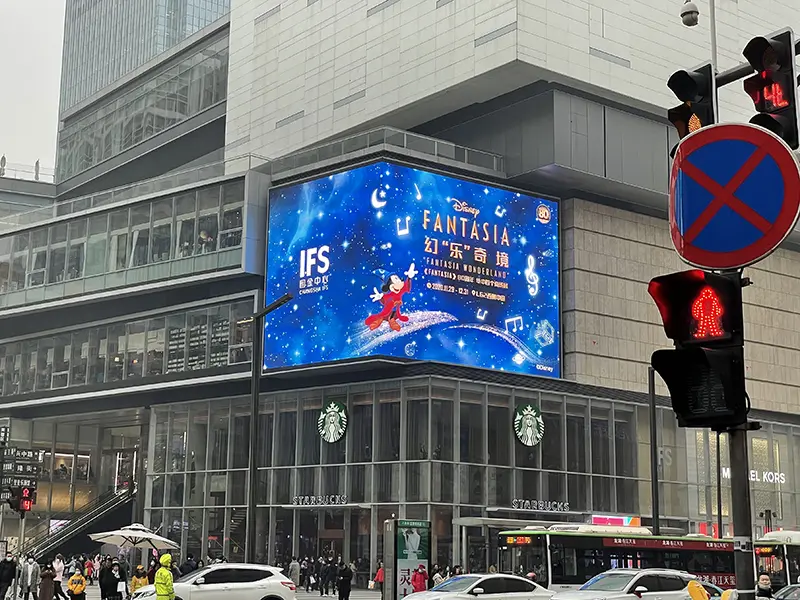

Application
Product Parameter
|
P4 |
P5 |
P6 |
P8 |
P10 |
|
|
Pixel Pitch |
4mm |
5mm |
6mm |
8mm |
10mm |
|
Density |
62,500 dots/m2 |
40,000 dots/m2 |
22,477 dots/m2 |
15,625 dots/m2 |
10,000 dots/m2 |
|
Led Type |
SMD1921 |
SMD1921 |
SMD2727 |
SMD3535 |
SMD3535 |
|
Screen Size |
768 x 768mm |
960 x 960mm |
960 x 960mm |
1024 x 1024mm |
960 x 960mm |
|
Drive Method |
1/16 Scan |
1/8 Scan |
1/8 Scan |
1/4 Scan |
1/2 Scan |
|
Best Viewing Distance |
4-40m |
5-50m |
6-60m |
8-80m |
10-100m |
|
Best Viewing Angle |
H 140°, V140° |
H 140°, V140° |
H 140°, V140° |
H 140°, V140° |
H 140°, V140° |
|
Brightness |
5000 nits |
5000 nits |
5500 nits |
6000 nits |
6500 nits |
|
Input Voltage |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
|
Average Power Consumption |
400W |
400W |
350W |
300W |
300W |
|
Waterproof Level |
Front IP65, Rear IP54 |
Front IP65, Rear IP54 |
Front IP65, Rear IP54 |
Front IP65, Rear IP54 |
Front IP65, Rear IP54 |
|
Control Method |
WIFI/4G/USB/LAN |
WIFI/4G/USB/LAN |
WIFI/4G/USB/LAN |
WIFI/4G/USB/LAN |
WIFI/4G/USB/LAN |
|
Life Span |
100,000 hours |
100,000 hours |
100,000 hours |
100,000 hours |
100,000 hours |
|
Certificates |
CE, RoHS, FCC |
CE, RoHS, FCC |
CE, RoHS, FCC |
CE, RoHS, FCC |
CE, RoHS, FCC |
How to choose a suitable outdoor LED display? What are the specifications?

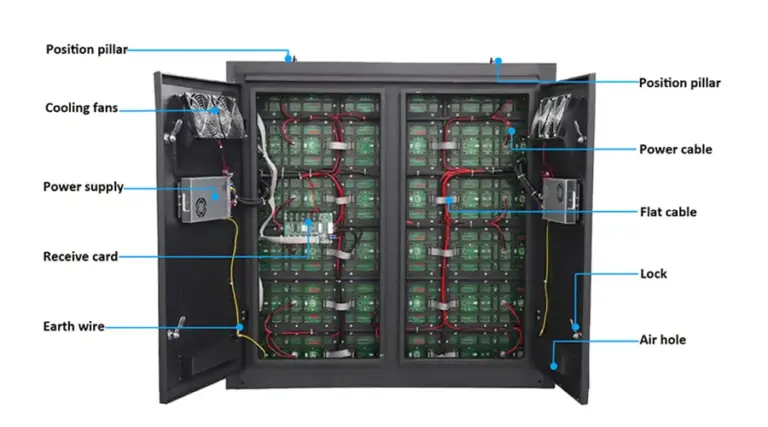

The outdoor LED display is connected by cabinets and supports synchronous and asynchronous control, outdoor LED display has different installation methods, such as wall-mounted, Wall Embedded, Single Pole and Double-Pole, Rooftop, etc.
How does the outdoor LED display work?
The outdoor LED display is connected by cabinets and supports synchronous and asynchronous control, outdoor LED display has different installation methods, such as wall-mounted, Wall Embedded, Single Pole and Double-Pole, Rooftop, etc.
What are the advantages of outdoor LED display?
1. Strong visual impact
2. High coverage
3. Long release period
4. The audience’s disgust rate is low
5. Energy saving and environmental protection
6. It is simple and convenient to publish information
7. Upgrade the city level
How to install the outdoor LED display?
1. Find a place to fix the fixing screw at the installation site.
2. Fix the frame on the wall.
3. Install the screen on the frame.
4. Connect the power cord and arrange the wires.
5. Turn on the screen and start debugging.
How long is the production lead time of the outdoor LED display screen?
Regular sizes are in stock, production time for customized products takes 15-20 days (depending on screen size).
