COB LED Display 8K Resolution for Monitor Room
10000:1 High Contrast
Waterproof & Dust-proof
Front Maintenance
Ultra High Definition
16:9 Golden Ratio Size
COB Technology

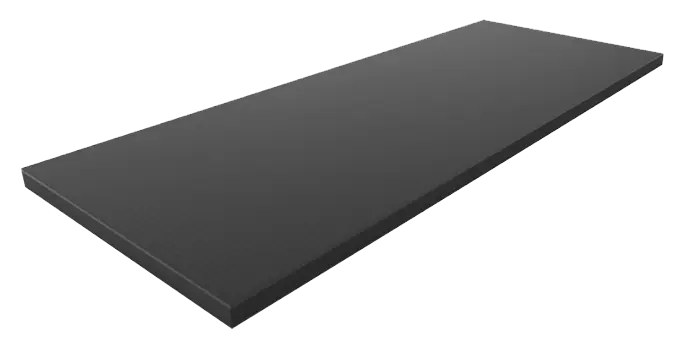

COB, the LED light-emitting chip is directly packaged on the PCB board, which realizes the conversion of the LED display unit from point to face, and effectively improves the viewing comfort, protection and safety and reliability of the LED display. COB LED screen is mainly used for micro-pitch LED display project.

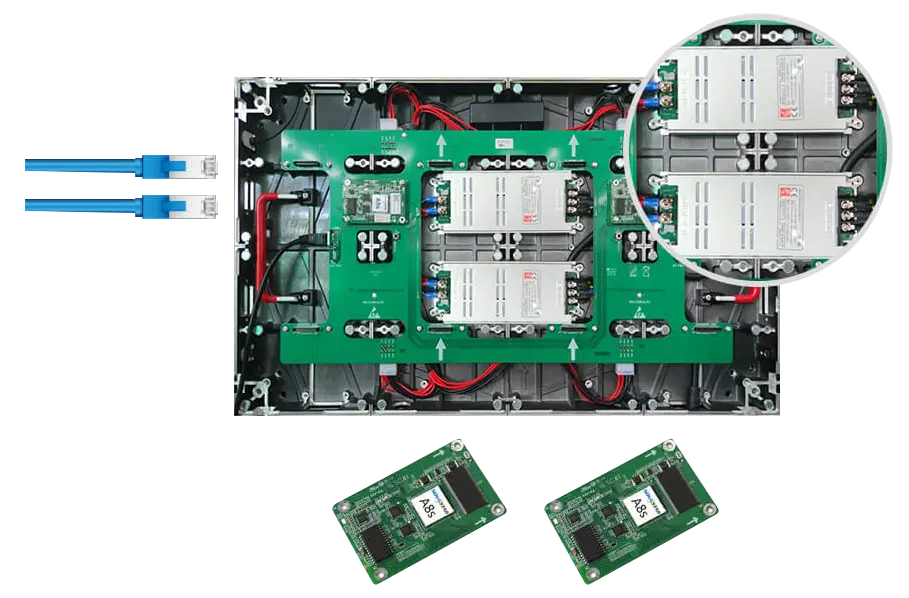

Never Black Screen
SGLED COB LED screen support dual backup for power and signal. When one power supply or receiving card has problem, another one will connect automatically, to achieve never black screen. It very suitable for live broadcast, monitor room, command center, conference etc.

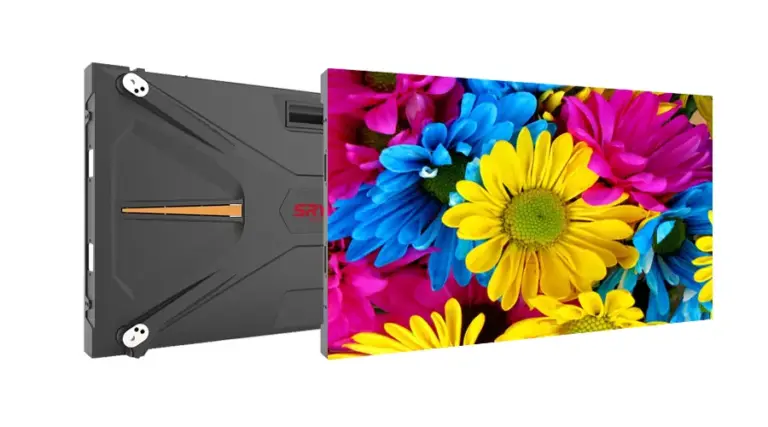

Ultra Light and Thin
SGLED COB LED display designed with complete front access, LED module and LED cabinet is ultra thin, total only 46mm, weight is 6.5KG/pc.

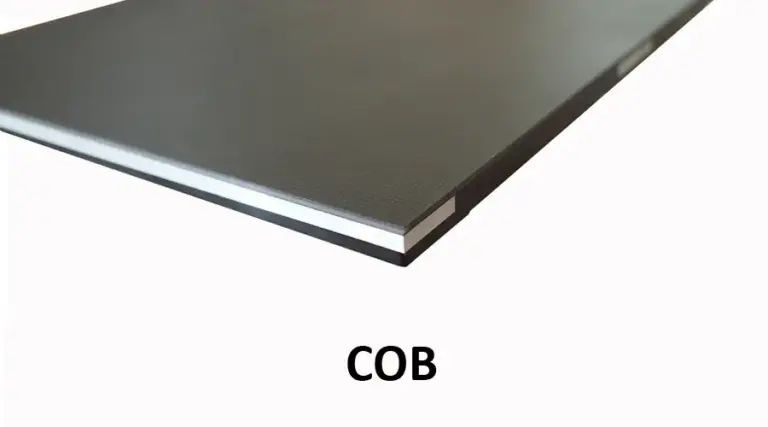

COB Advantages
1. LED Chip is directly packed on the PCB board withouth bracket, which can increase the pixel density.
2. Cured with epoxy resin to improve the protective performance.
3. Increase the viewing angle to bring a better visual effect.
4. Using PCB board to dissipate heat, reduce chip heat resistance and improve LED display reliability and stability.
5. Realize the conversion of LED from point to face, and the image is more uniform.
6. Improve the contrast of LED display, effectively reduce the light intensity, eliminate glare, and not easy to produce visual fatigue.

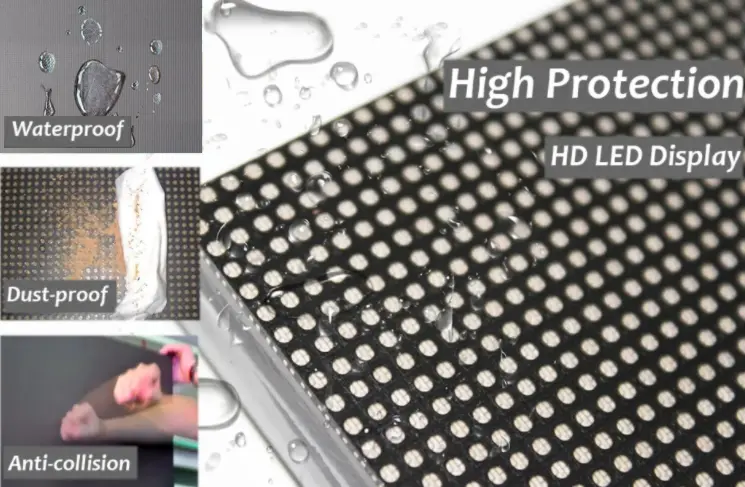

High Protection
Sealed with epoxy resin, SGLED COB LED display is waterproof, dust-proof, moisture proof and anti-collision. It is durable and can be cleared easily.
Ultra High Contrast
Power supplies, signal cables and receiving cards are double backup, to ensure supply power normally, it can perfect response to emergencies.
Our Service
1. Free technical training if needed.
---Client can visit SGLED factory, and SGLED technician will teach you how to use Event LED Display and repair rental LED display.
2. Professional after sale service.
---Our technician will help you to configure rental LED screen by remote if you don’t know how to make rental LED screen work.
--- We send you spare part LED modules, power supply, controller card and cables. And we repair rental LED modules for you all life.
3. Local installation is supported. ---Our technician can go to your place to install rental LED screen if needed.
4. LOGO print. ---SGLED can print LOGO free even if buy 1 piece.
FAQ
Q. How long time is needed to produce?---A. Our production time is 3-15 working days.
Q. How long does shipping take?---A. Express and air shipping usually take 5-10 days. Sea shipping takes about 15-55 days according to different country.
Q. What trade terms do you support?---A. We usually do FOB, CIF, DDU, DDP, EXW terms.
Q. This is the first time to import, I don’t know how to do.---A. We offer DDP door to door service, you just need to pay us, then wait to receive order.
Q. Do I need to buy other equipment to install LED screen?---A. You just need to prepare structure and installation tools.
How We Do?
1. Order type -- We have many hot sale model LED video wall ready to ship, and we also support OEM and ODM. We can customize LED screen size, shape, pixel pitch, color and package according to customer's request.
2. Payment method -- T/T, L/C, PayPal, credit card, Western Union and cash are all available.
3. Shipping way -- We usually ship by sea or by air. if order is urgent, express such as UPS, DHL, FedEx, TNT and EMS are all okay.
Video

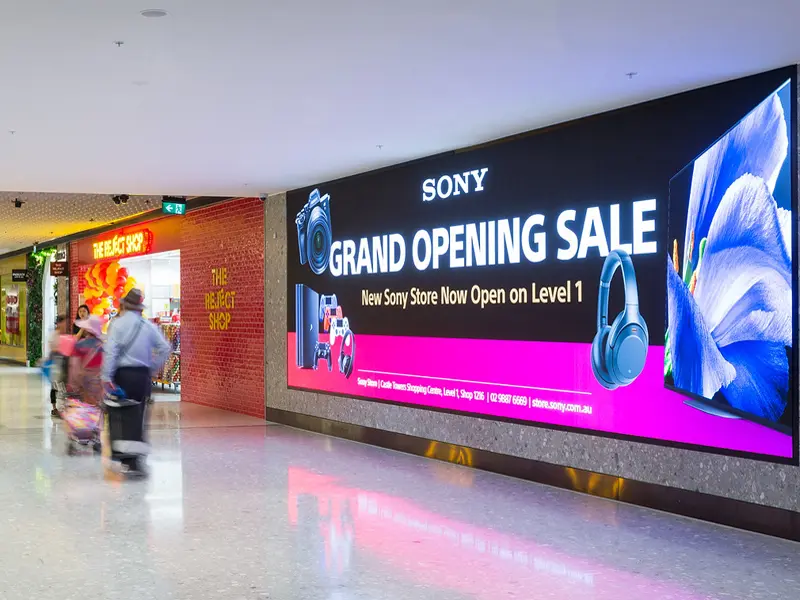

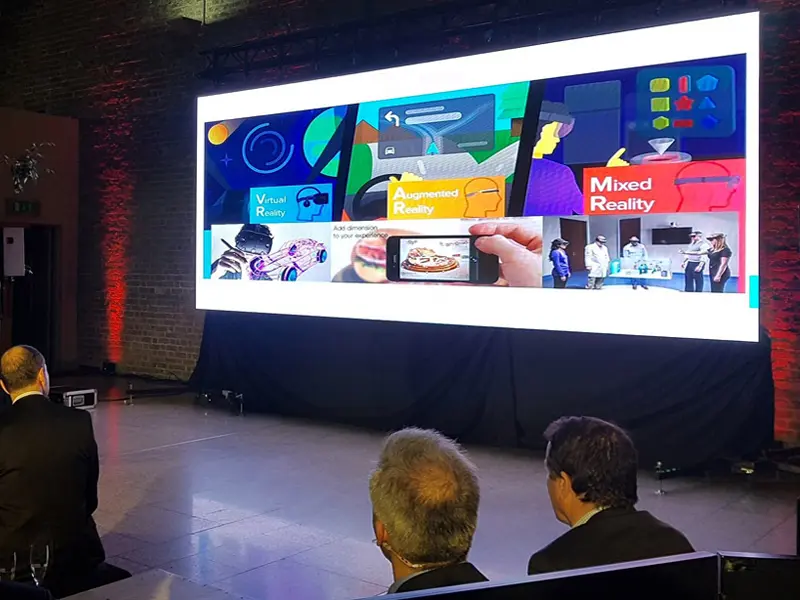

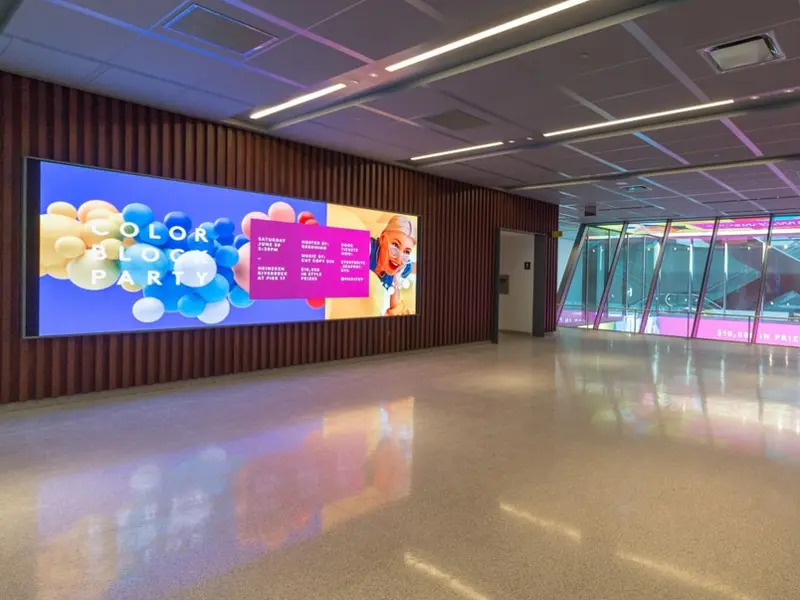

Application

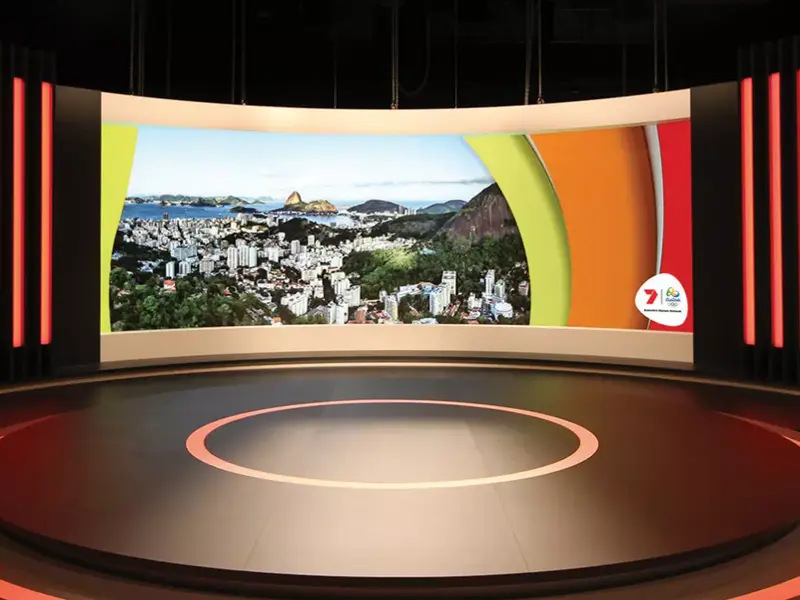

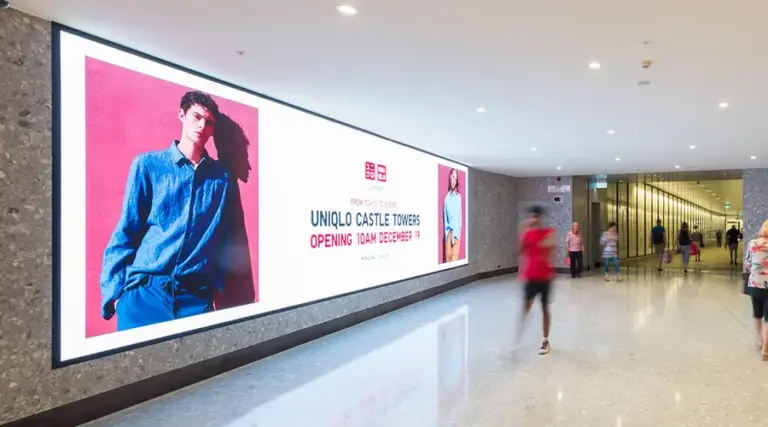

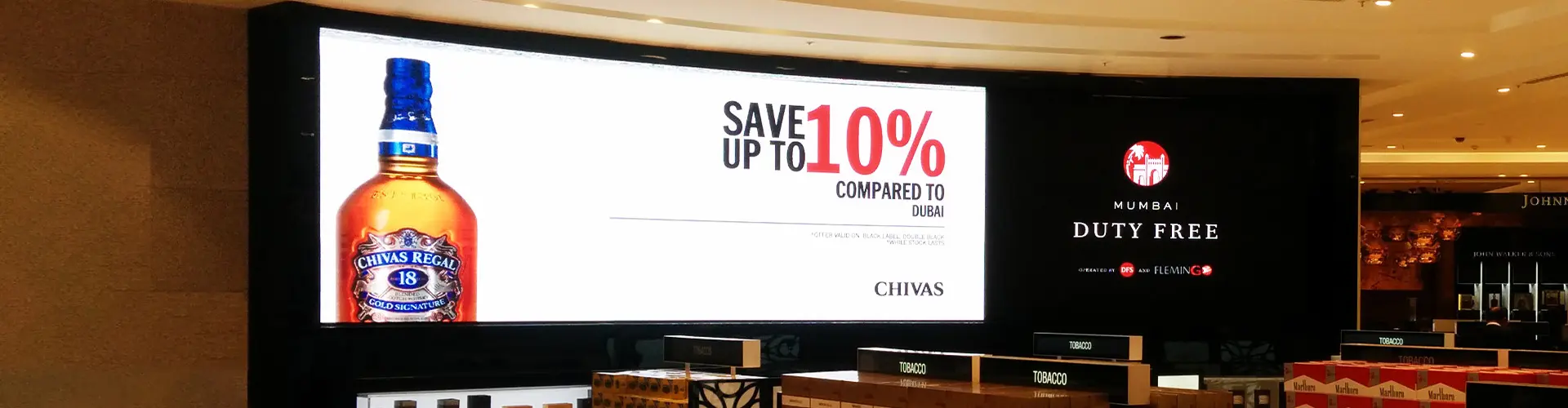

SGLED COB LED display is widely used for conference room, monitor room, TV studio, LED TV.
Product Parameter
|
|
P0.93 common cathode |
P1.25 common cathode |
|
Pixel Pitch |
0.93mm |
1.25mm |
|
Density |
1,156,203dots/m2 |
640,000dots/m2 |
|
Module Size |
150 x 168.75mm |
150 x 168.75mm |
|
Led Type |
COB1010 |
COB1010 |
|
Panel Size |
600 x 337.5 x 50 mm |
600 x 337.5 x 50 mm |
|
Panel Resolution |
640 x 360 dots |
480 x 270 dots |
|
Panel Material |
Die Casting Aluminum |
Die Casting Aluminum |
|
Screen Weight |
6.5 KG |
6.5 KG |
|
Drive Method |
1/60 Scan |
1/45Scan |
|
Best Viewing Angle |
H 140°, V 140° |
H 140°, V 140° |
|
Best Viewing Distance |
0.8 - 10m |
1.2 - 15 m |
|
Brightness |
500 -900 nits |
600 - 900 nits |
|
Input Voltage |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
|
Max Power Consumption |
550W |
300W |
|
Average Power Consumption |
180W |
95W |
|
Application |
Indoor |
Indoor |
|
Maintenance Way |
Front Access |
Front Access |
|
Working Temperature |
-20 - +50°C |
-20 - +50°C |
|
Work Humidity |
10% - 90% RH |
10% - 90% RH |
|
Life Span |
100,000 Hours |
100,000 Hours |
