Digital LED Billboard for Outdoor Advertising Energy-Saving

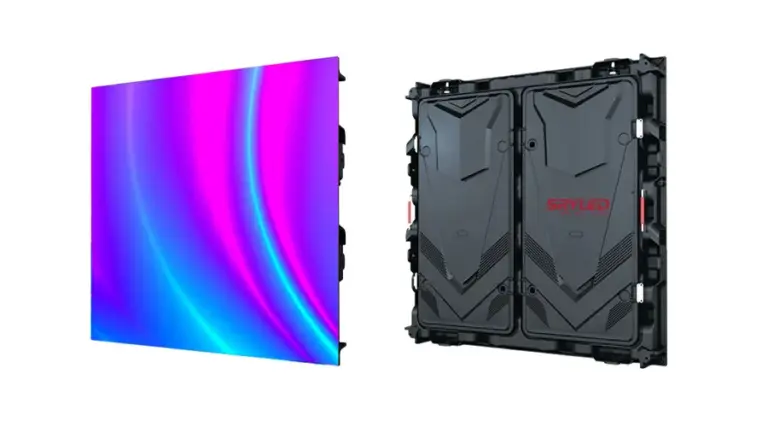

960 x 960mm Standard Size LED Panel
SMD and DIP LED Technology

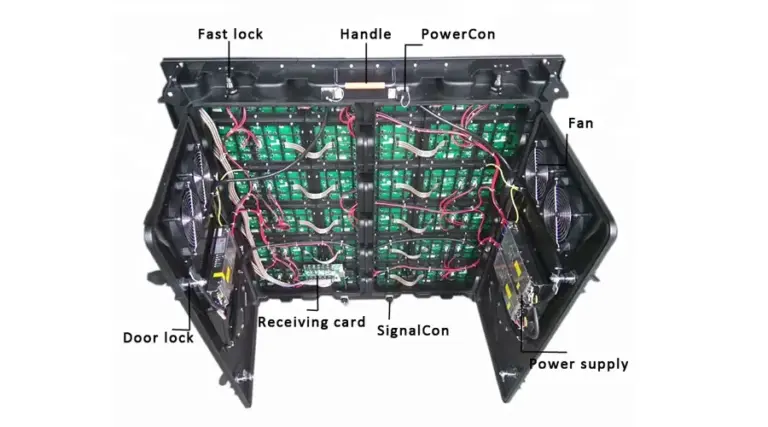

Front & Rear Maintenance
Easy Installation and Connection
CE, RoHS, FCC Approved

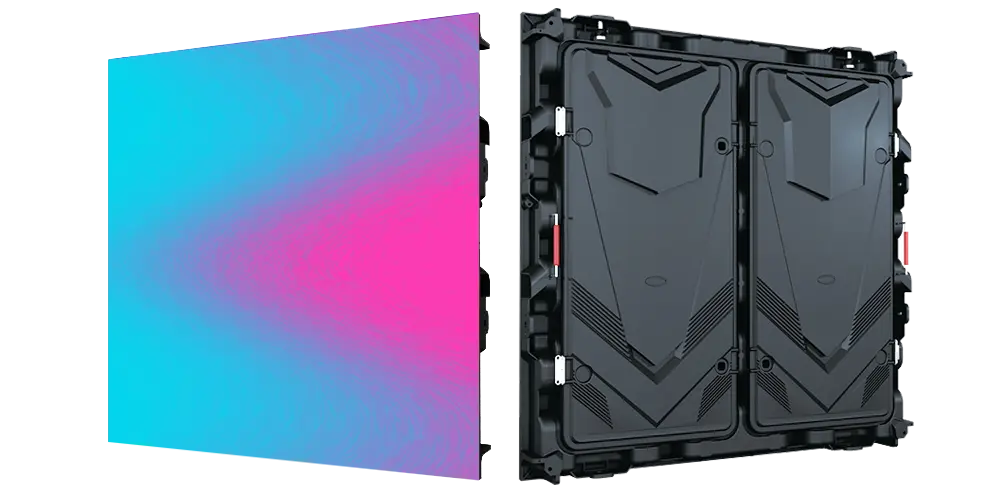

960x960mm Standard Size
Light Weight

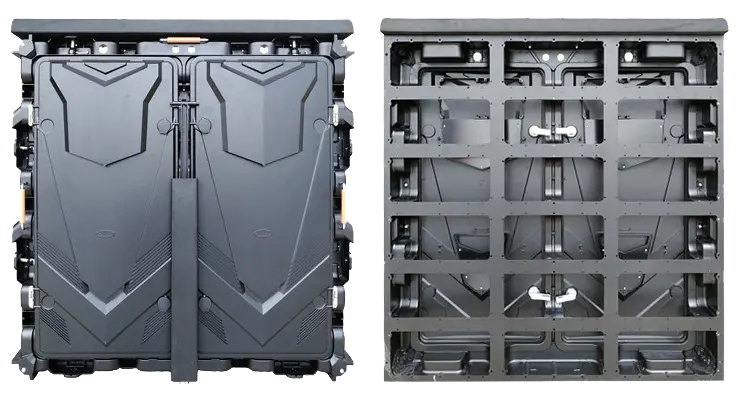

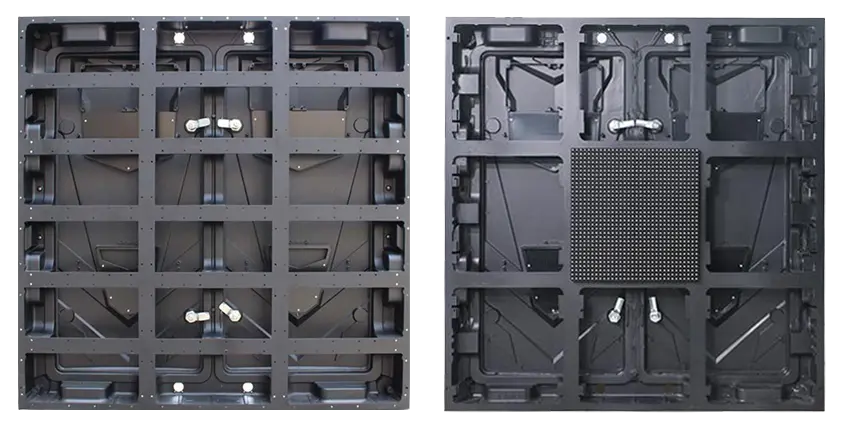

Rear and Front Access
Multiple Installation Way

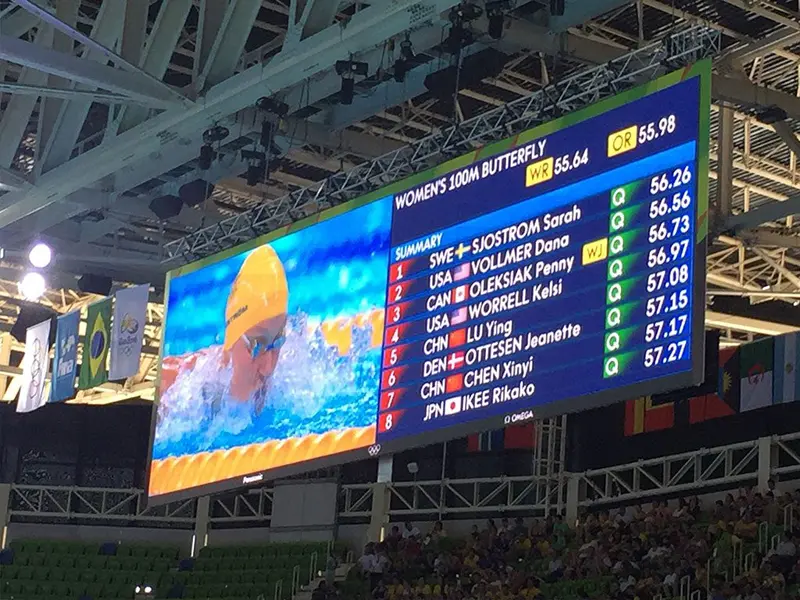

Use for Stadium
SMD and DIP Technology

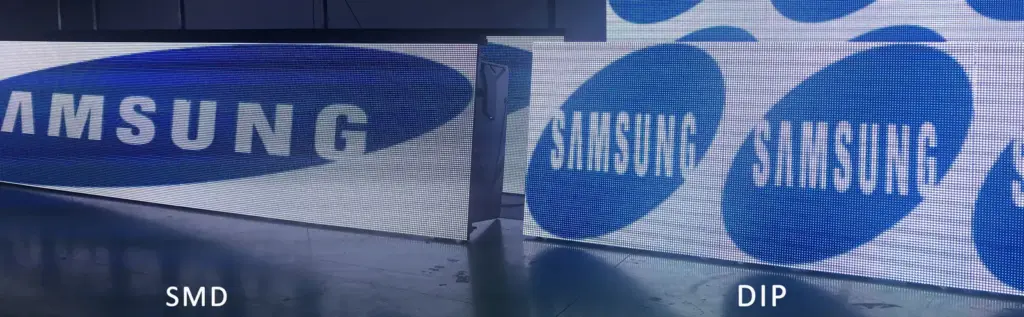

We have SMD and DIP LED display for outdoor advertising. If the installation position sunlight is very strong, we suggest choose DIP LED display, its brightness can be at least 8000 nits (below image is SMD and DIP LED display brightness comparison). We can provide steel structure CAD drawing for you and assistant you assemble.
Accessories
Our Service
1. Free technical training if needed. ---Client can visit SRYLED factory, and SGLED technician will teach you how to use LED display and repair LED display.
2. Professional after sale service.
---Our technician will help you to configure LED screen by remote if you don’t know how to make LED screen work.
--- We send you enough spare part LED modules, power supply, controller card and cables. And we repair LED modules for you all life.
3. Local installation is supported. ---Our technician can go to your place to install LED screen if needed.
4. LOGO print. ---SRYLED can print LOGO free even if buy 1 piece.
FAQ
Q. How long time is needed to produce? ---A. Our production time is 3-15 working days.
Q. How long does shipping take? ---A. Express and air shipping usually take 5-10 days. Sea shipping takes about 15-55 days according to different country.
Q. What trade terms do you support? ---A. We usually do FOB, CIF, DDU, DDP, EXW terms.
Q. This is the first time to import, I don’t know how to do. ---A. We offer DDP door to door service, you just need to pay us, then wait to receive order.
Q. Do I need to buy other equipment to install LED screen? ---A. You just need to prepare power distribution box , steel structure and installation tools.
Q. What is LED screen common size? --A. 12m x 8m, 8m x 6m, 6m x 4m, 4m x3m etc are popular size. We can customize size according to your actual installation area.
How We Do?
1, Order type -- We have many hot sale model LED video wall ready to ship, and we also support OEM and ODM. We can customize LED screen size, shape, pixel pitch, color and package according to customer's request.
2, Payment method -- T/T, L/C, PayPal, credit card, Western Union and cash are all available.
3, Shipping way -- We usually ship by sea or by air. if order is urgent, express such as UPS, DHL, FedEx, TNT and EMS are all okay.
Video

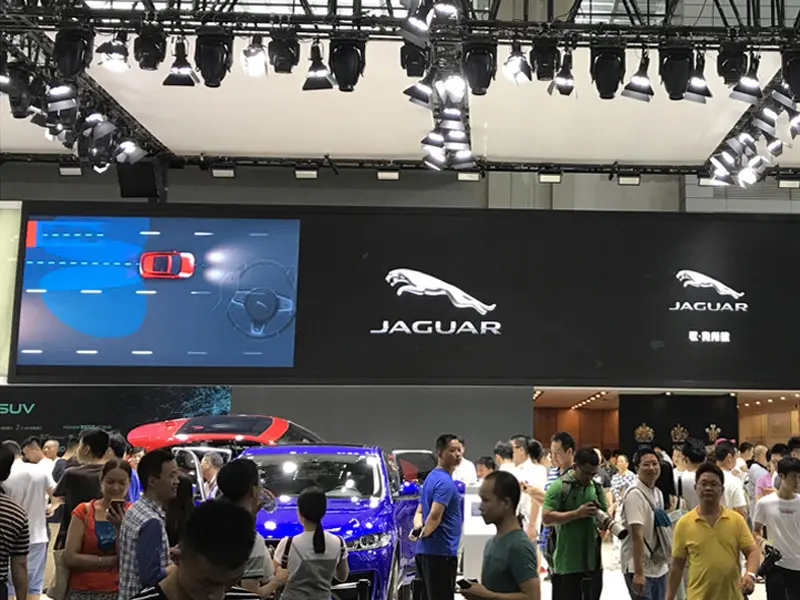

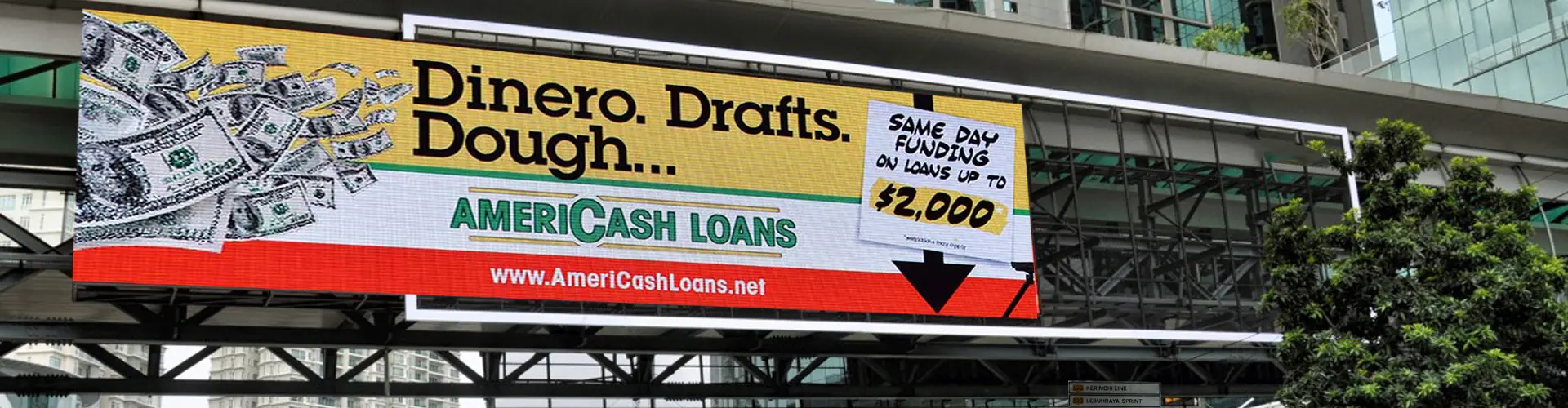

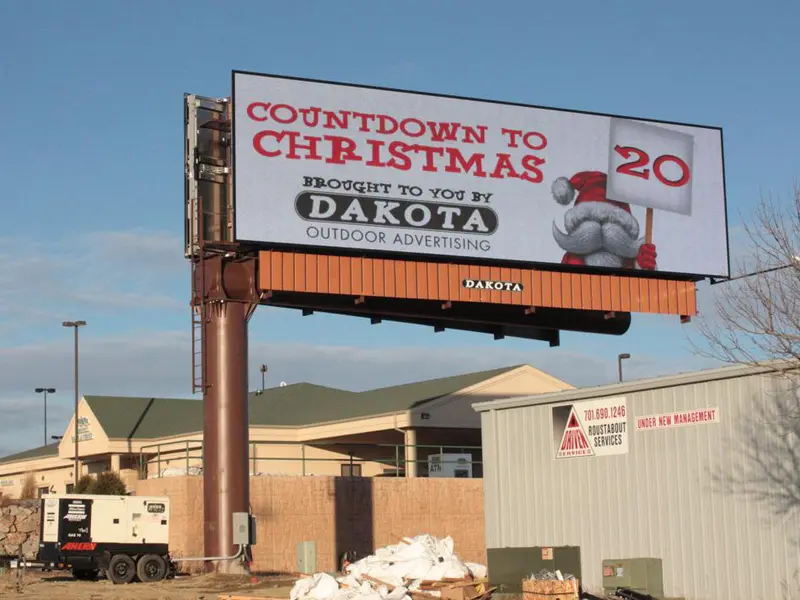

Application
Product Parameter
|
P5 |
P6.67 |
P8 |
P10 |
|
|
Pixel Pitch |
5mm |
6.67mm |
8mm |
10mm |
|
Density |
40,000 dots/m2 |
22,477 dots/m2 |
15,625 dots/m2 |
10,000 dots/m2 |
|
Led Type |
SMD1921 |
SMD3535 / DIP570 |
SMD3535 / DIP570 |
SMD3535 / DIP570 |
|
Module Size |
320 x 160mm |
320 x 160mm / 320 x 320mm |
320 x 160mm / 320 x 320mm |
320 x 160mm / 320 x 320mm |
|
Screen Size |
960 x 960mm |
960 x 960mm |
960 x 960 mm |
960 x 960mm |
|
Drive Method |
1/8 Scan |
1/8 Scan |
1/5 Scan |
1/4 Scan |
|
Best Viewing Distance |
5-50m |
6-60m |
8-80m |
10-100m |
|
Best Viewing Angle |
H 140°, V140° |
H 140°, V140° |
H 140°, V140° |
H 140°, V140° |
|
Brightness |
5000 nits |
5500 nits / 7500 nits |
6000 nits / 7500nits |
6500 nits / 8000nits |
|
Maintenance |
Rear Access |
Front & Rear Access |
Front & Rear Access |
Front & Rear Access |
|
Input Voltage |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
|
Average Power Consumption |
400W |
350W |
300W |
300W |
|
Waterproof Level |
Front IP65, Rear IP54 |
Front IP65, Rear IP54 |
Front IP65, Rear IP54 |
Front IP65, Rear IP54 |
|
Control Method |
WIFI/4G/USB/LAN |
WIFI/4G/USB/LAN |
WIFI/4G/USB/LAN |
WIFI/4G/USB/LAN |
|
Life Span |
100,000 hours |
100,000 hours |
100,000 hours |
100,000 hours |
|
Certificates |
CE, RoHS, FCC |
CE, RoHS, FCC |
CE, RoHS, FCC |
CE, RoHS, FCC |
