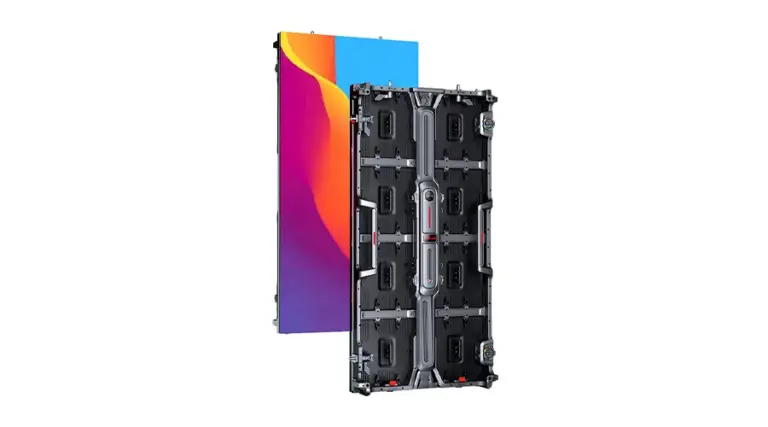

GOB Indoor P2.6 Event LED Display 500x500mm &500x1000mm LED Panel
Modular HUB Design
8K Resolution
7680Hz Refresh Rate
Front Maintenance
Seamless Mixed Splicing
What is GOB LED display？
Details
The R series LED display is a private mold panel designed by SGLED NEW. It is an upgraded version of the rental led display screen, with beautiful appearance and complete functions. The R-type GOB LED indoor display uses special packaging technology. Windproof, dustproof and impact-proof are the biggest features of GOB display. GOB technology not only extends the service life of the display, but also provides clearer images and colors.
GOB Version
P2.6 Indoor GOB version, Anti-Crash / Waterproof / Dustproof, safe and reliable, reduces maintenance costs
High Refresh High Brightness
8K Resolution
Discover stunning realism with our 8K resolution LED display Every detail comes to life with unparalleled clarity
7680Hz Refresh Rate
Our products have a high refresh rate 7680 Hzgiving you a smoother and more comfortable visual experience

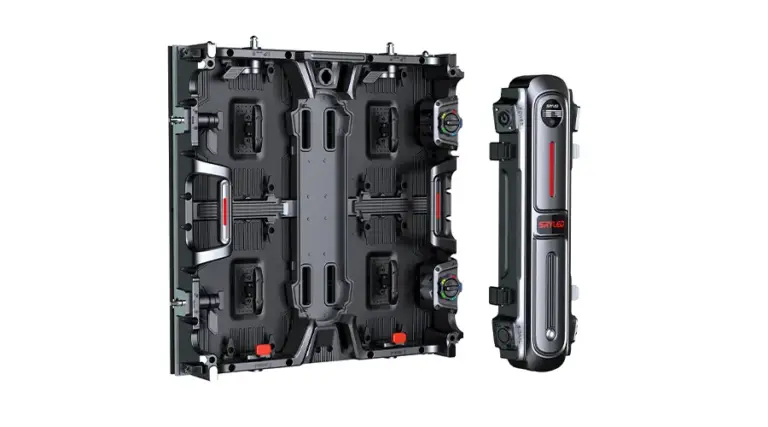

Modular Hub Design

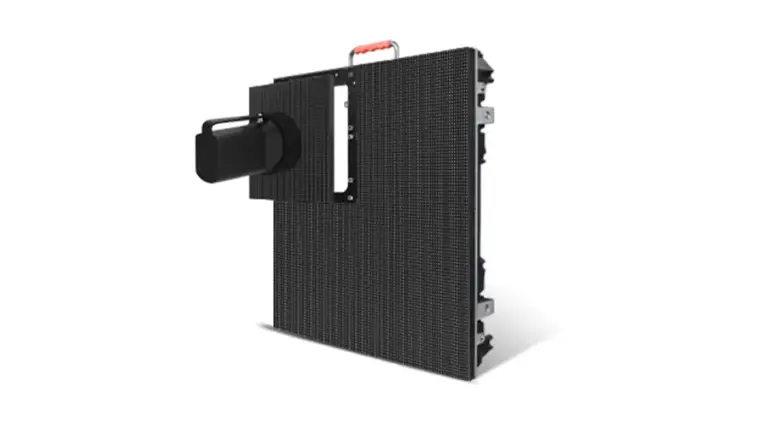

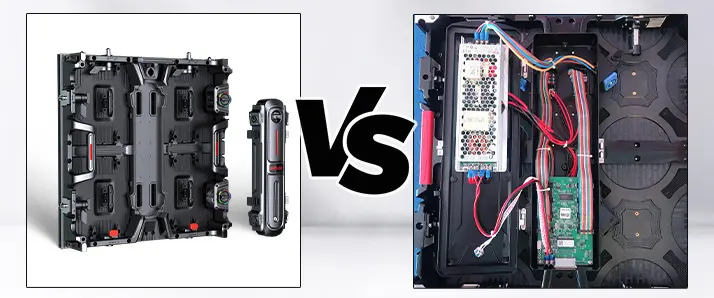

SGLED R series private model panel with independent power box, quickmaintenance. Other supplier public model panel, more difficult to maintain andassemble

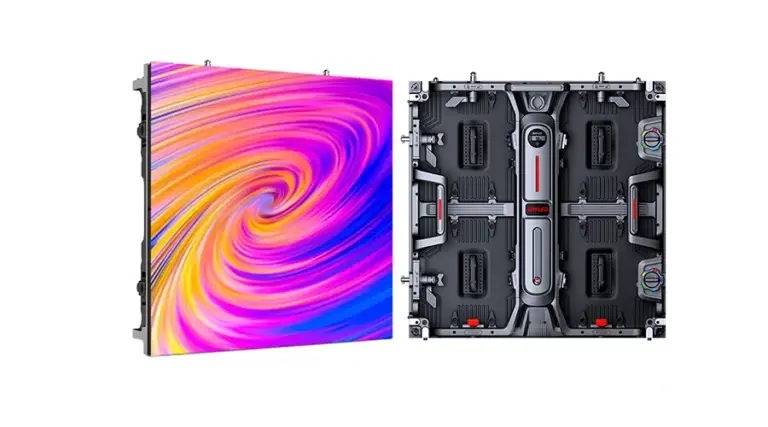

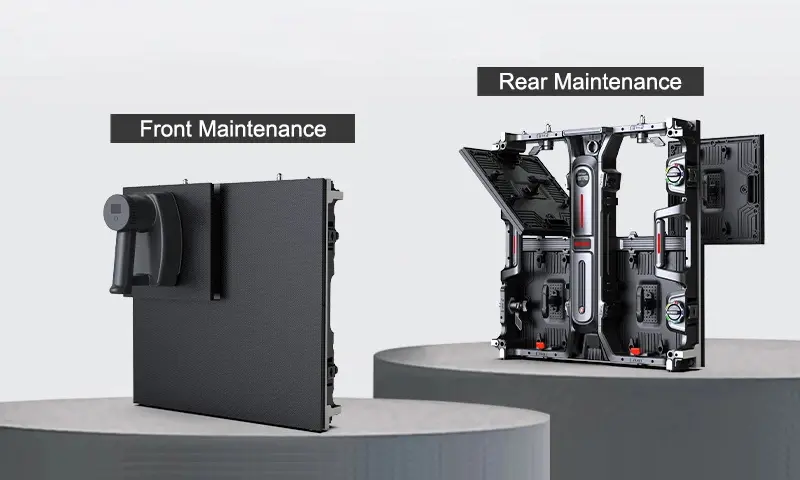

Front & Rear Access
Both front access and rear access are supportedIt make installation and maintenance easier.

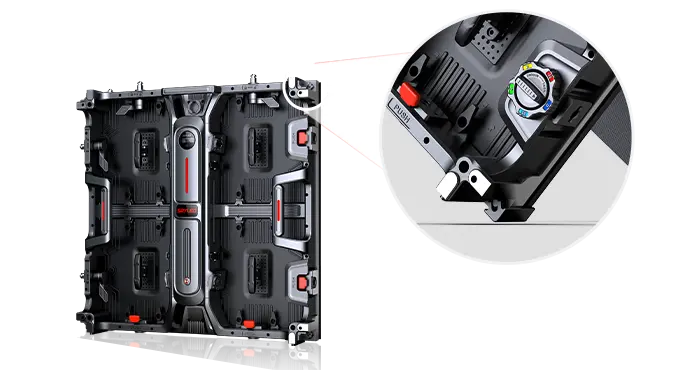

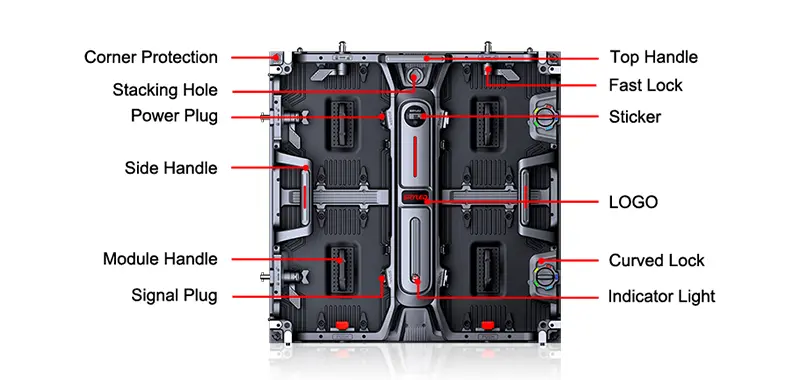

Corner Protection
R series LED video panel has corner protection equipment,it can protect LED video wallnot be damaged during assembly and transportation.

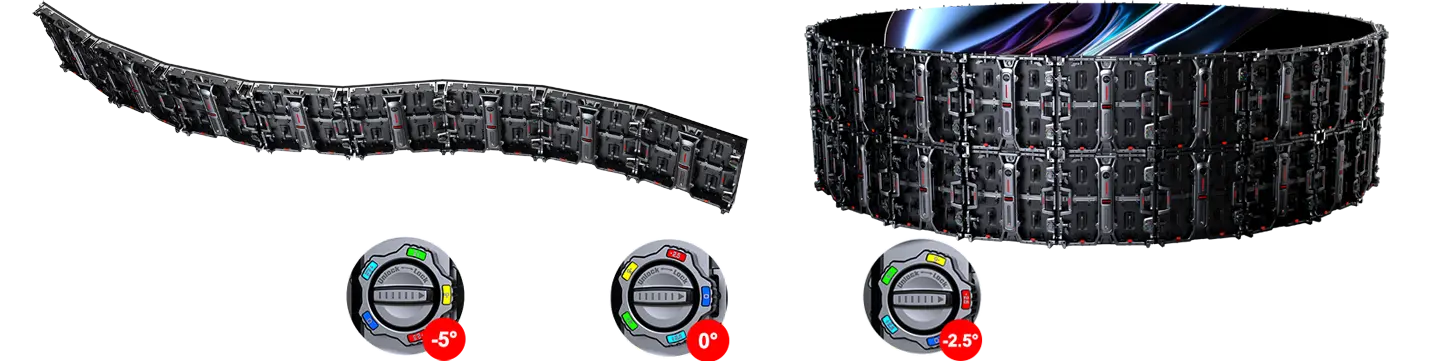

Support Curved Installation

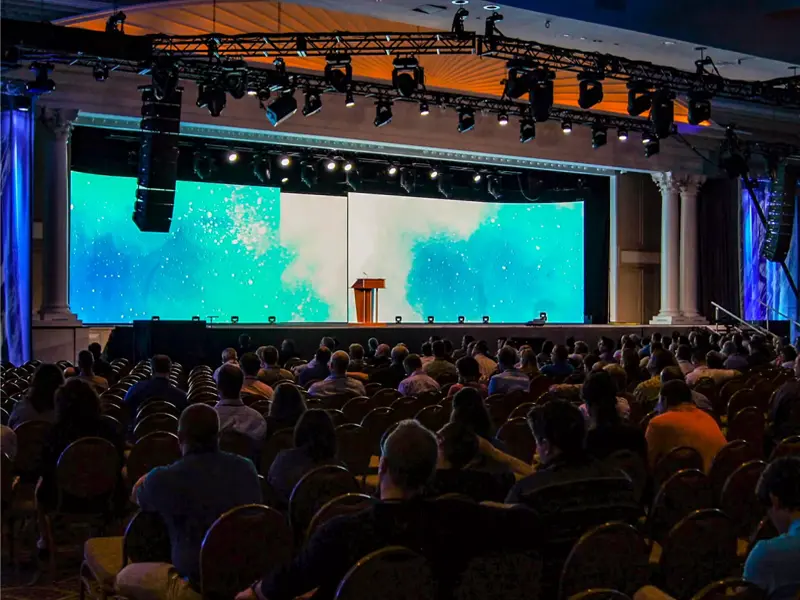

R series LED video panel can make cuved LED display, both inner and outer arc are supported, and 36pcs LED panels can make a circle LED display.

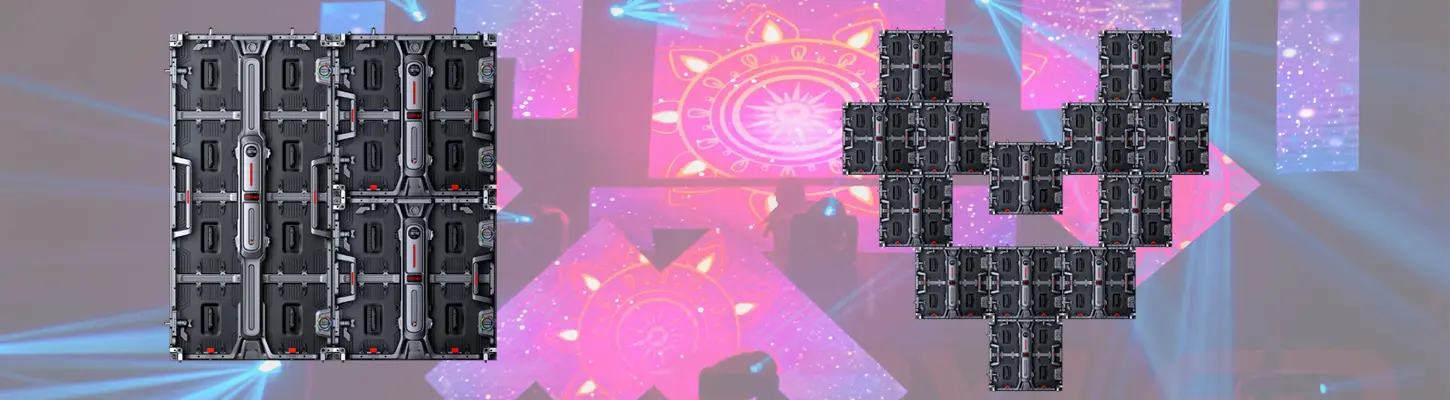

Seamless Splicing

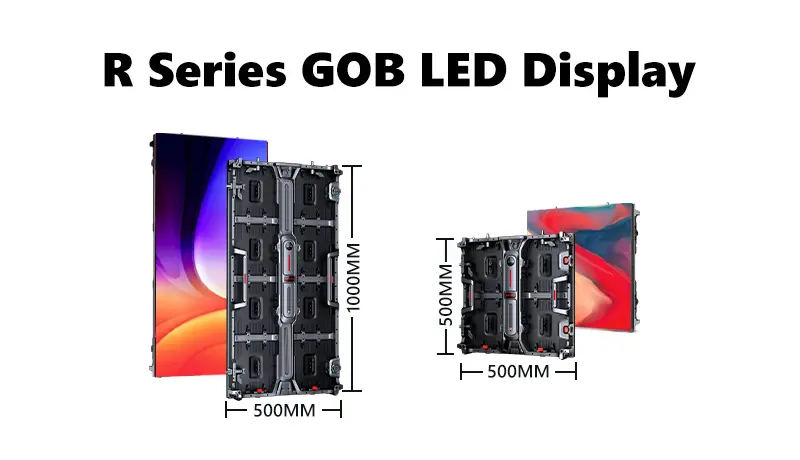

500x500mm LED panels and 500x1000mm LED panels can be seamless spliced from top to bottom and from left to right.
Our Service
1, 3 years warranty. ---SGLED offer 3 years warranty for all LED video walls. We can repair or replace accessories free during this period.
2, Professional after sale service.
--- We provide installation and operation video and instruction for each order, as well as steel structure CAD drawing.
---Our technician will help you to configure LED screen by remote if you don’t know how to make LED screen work.
3, Local installation is supported. ---Our technician can go to your place to install LED screen if needed.
4, OEM and ODM.--- SGLED support customize color, size and shape for LED display, and we can free print LOGO on LED panels or packages even if buy 1 piece sample.
FAQ
Q. Is R series private model or industrial public model? ---A. R series LED panels are designed by SRYLED, it is our private model.
Q. Can this LED display be installed permanently outside? ---A. RT series LED panel is for events use. It has no problem to be used outdoor for events. But if need long time used outdoor, such as install on truck or trailer, it is better to buy fixed LED display.
Q. What's the production time? ---A. We have some indoor and outdoor P3.91 LED display in stock, which can be shipped in 3 days. Other model production time is 7-15 working days.
Q. How long does shipping take? ---A. Express and air shipping usually take 5-10 days. Sea shipping takes about 15-55 days according to different country.
Q. What trade terms do you support? ---A. We accept T/T, Western Union, PayPal, Credit Card, Cash, L/C etc.
Q. This is the first time to import, I don’t know how to do. ---A. We offer DDP door to door service, you just need to pay us, then wait to receive order.
How We Do?
1. Order type -- We have many hot sale model LED video wall ready to ship, and we also support OEM and ODM. We can customize LED screen size, shape, pixel pitch, color and package according to customer's request.
2. Payment method -- T/T, L/C, PayPal, credit card, Western Union and cash are all available.
3. Shipping way -- We usually ship by sea or by air. if order is urgent, express such as UPS, DHL, FedEx, TNT and EMS are all okay.
Video
Application

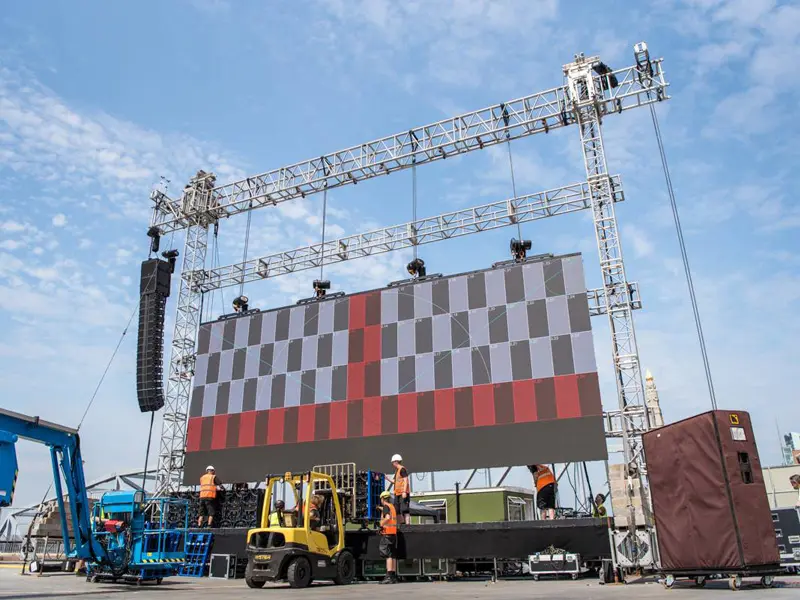

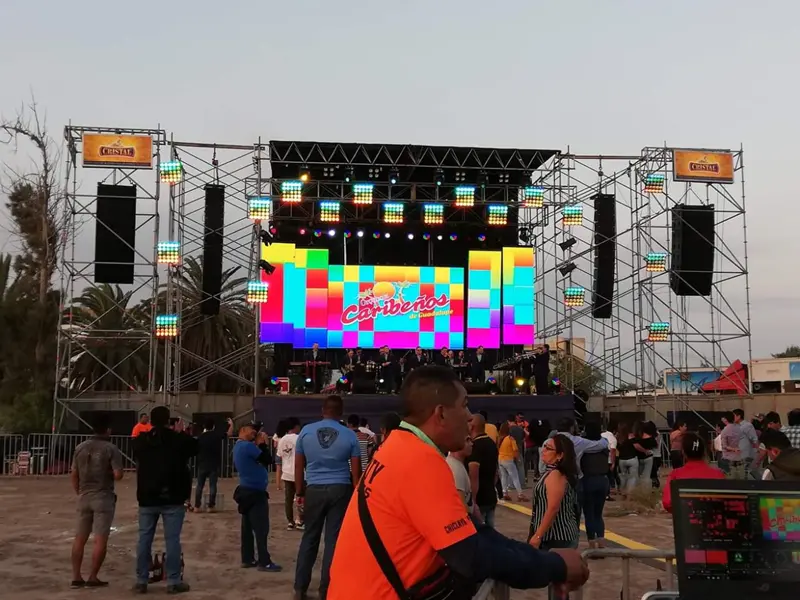

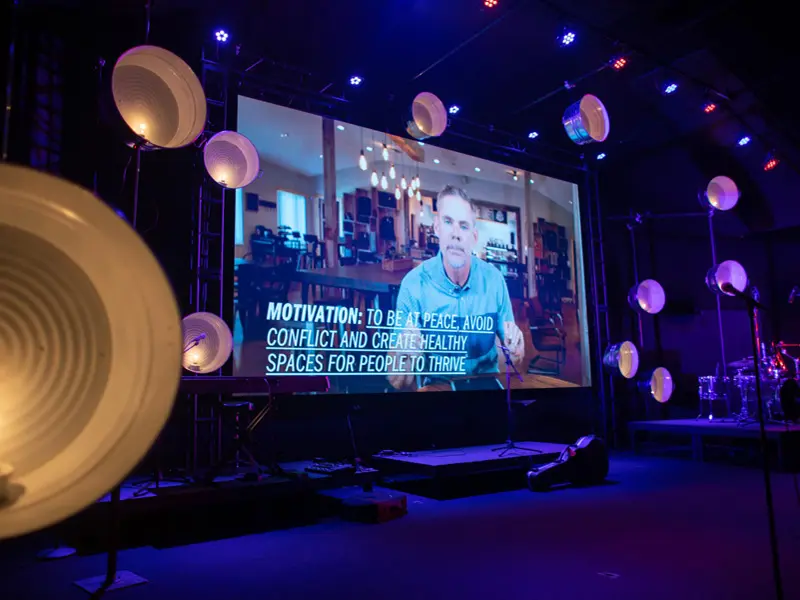

SGLED R series LED display panel can be used for both indoor and outdoor, front access and rear access ar all supported. It mainly used for stage LED display, concert LED display, event LED screen, church backdrop LED screen etc.
Product Parameter
|
P1.95 |
P2.604 |
P2.976 |
P3.91 |
|
|
Pixel Pitch |
1.95mm |
2.604mm |
2.976mm |
3.91mm |
|
Density |
262,144 dots/m2 |
147,928 dots/m2 |
123904dot/m2 |
65,536dots/m2 |
|
Led Type |
SMD1515/SMD1921 |
SMD1515/SMD1921 |
SMD2121/SMD1921 |
SMD2121/SMD1921 |
|
Panel Size |
500 x500mm & 500x1000mm |
500 x500mm & 500x1000mm |
500 x500mm & 500x1000mm |
500 x500mm & 500x1000mm |
|
Panel Resolution |
256x256dots / 256x512dots |
192x192dots / 192x384dots |
168x168dots / 168x336dots |
128x128dots / 128x256 dots |
|
Panel Material |
Die Casting Aluminum |
Die Casting Aluminum |
Die Casting Aluminum |
Die Casting Aluminum |
|
Screen Weight |
7.6KG / 14KG |
7.6KG / 14KG |
7.6KG / 14KG |
7.6KG / 14KG |
|
Drive Method |
1/64 Scan |
1/32 Scan |
1/28 Scan |
1/16 Scan |
|
Best Viewing Distance |
1.9-20m |
2.5-25m |
2.9-30m |
4-40m |
|
Brightness |
900 nits / 4500 nits |
900 nits / 4500 nits |
900 nits / 4500 nits |
900 nits / 5000nits |
|
Input Voltage |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
|
Max Power Consumption |
800W |
800W |
800W |
800W |
|
Average Power Consumption |
300W |
300W |
300W |
300W |
|
Waterproof (for outdoor) |
Front IP65, Rear IP54 |
Front IP65, Rear IP54 |
Front IP65, Rear IP54 |
Front IP65, Rear IP54 |
|
Application |
Indoor & Outdoor |
Indoor & Outdoor |
Indoor & Outdoor |
Indoor & Outdoor |
|
Life Span |
100,000 Hours |
100,000 Hours |
100,000 Hours |
100,000 Hours |
